Application:

Long distance and local area network

Suitable for aerial pipeline laying method

Operating Temperature: -40℃~+60℃

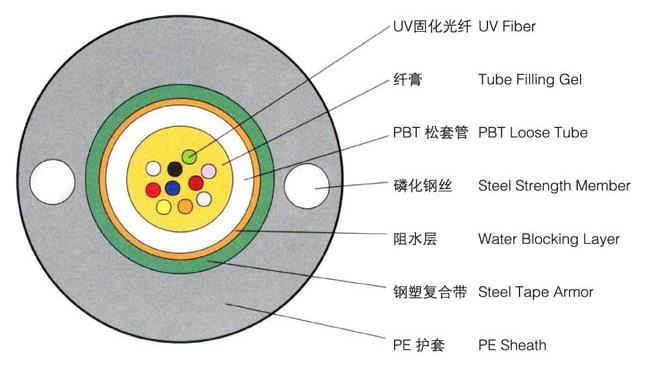

Center Tube Type Optical Fiber

Corrugated PSP coheres tightly with PE sheath

Between the PSP and the loose tube, the hot-melt adhesive

material is applied to keep the cable compact and watertight

Two parallel steel wires ensure tensile strength in PE Sheath

Cable Characteristic:

1.Low dispersion and attenuation

2.Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental performance.

3.Compact fiber structure, between the PSP and the loose tube, hot-melt adhesive material is applied to keep the cable compact and watertight, this special tube filling compound ensure a critical protection of fiber moisture-proof and ensure the loose tube do not rebound.

4.Light weight and friendly installation

5.Compact flexible structure and good bending-resistant performance

The armoring of corrugate steel tape ensures cable has nice properties of compressive resistance and crush resistance
