Application:
Long distance and local area network
Suitable for aerial pipeline laying method
Operating Temperature: -40℃~+60℃

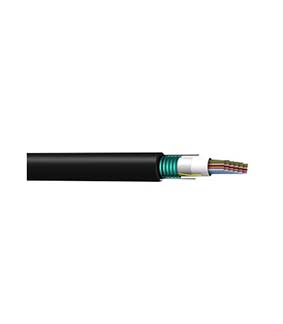

Center Tube Type Optical Fiber
Corrugated PSP coheres tightly with PE sheath
Between the PSP and the loose tube, the hot-melt adhesive material is applied to keep the cable compact and watertight
Two parallel steel wires ensure tensile strength in PE Sheath
Cable Characteristic:
1.Low dispersion and attenuation
2.Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental performance.
3.Compact fiber structure, between the PSP and the loose tube, hot-melt adhesive material is applied to keep the cable compact and watertight, this special tube filling compound ensure a critical protection of fiber moisture-proof and ensure the loose tube do not rebound.
4.Fiber counts is high for 6-144 cores, steel taple amor structure keeps cable highly crush resistance performance.
