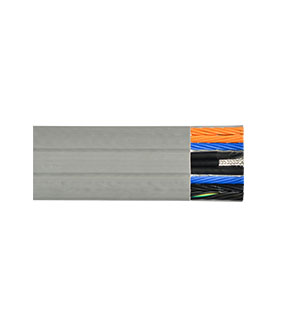

Elevator suspension traveling cable for intemal and panoramic elevators,for middle rise elevator.

Technical Data

Conductor material : IEC 60228 class 5

Insulation material: PVC/D IEC 60227-1

Halogen free low smoke flame retardant property comply with IEC61034-2

comply with IEC60754-2

comply with IEC 60332-3 category B or C

Jacket material: PVC/ST5 IEC 60227-1

Life time(Running times) :3Million times

Rated Volatage:This product is fit for the rated voltage 300/500V and below.

Work Temperature

The Max.Conductor temperature is 70℃.

The operating temperature of PVC cable is-15 to 70℃

The operating temperature of LSOH cable is-40 to 70℃

Other Attentions

Free suspension length should not exceed 80 meters.

The lift speed should not exceed 4m/s.
