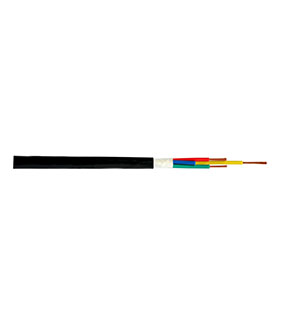

Power and signal transmission for elevator and escalator.
Technical Data
Conductor material : IEC 60228 class 5
Insulation material: PVC/D IEC 60227-1
Halogen free low smoke flame retardant property comply with IEC61034-2
comply with IEC60754-2
comply with IEC 60332-3 category B or C
Jacket material: PVC/ST5 IEC 60227-1
Option:mouse proof termite proof property.
Life time(Running times) :3Million times
Rated Volatage:This product is fit for the rated voltage 300/500V and below.
Work Temperature
The Max.Conductor temperature is 70℃.
The operating temperature of PVC cable is-15 to 70℃
The operating temperature of LSOH cable is-40 to 70℃
