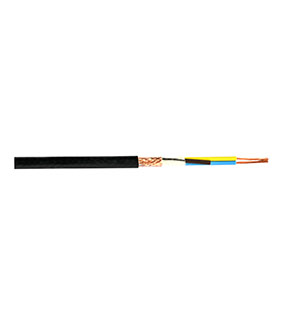

Power and signal transmission for elevator and escalator.

Technical Data

Conductor material : IEC 60228 class 5

Insulation material: PVC/D IEC 60227-1

Halogen free low smoke flame retardant property comply with IEC61034-2

comply with IEC60754-2

comply with IEC 60332-3 category B or C

Jacket material: PVC/ST5 IEC 60227-1

Option:mouse proof termite proof property.

Life time(Running times) :3Million times

Rated Volatage:This product is fit for the rated voltage 300/300V.

Work Temperature

The Max.Conductor temperature is 70℃.

The operating temperature of PVC cable is-15 to 70℃

The operating temperature of LSOH cable is-40 to 70℃

Shielding material: Copper braid shielded、Aluminum shielded
