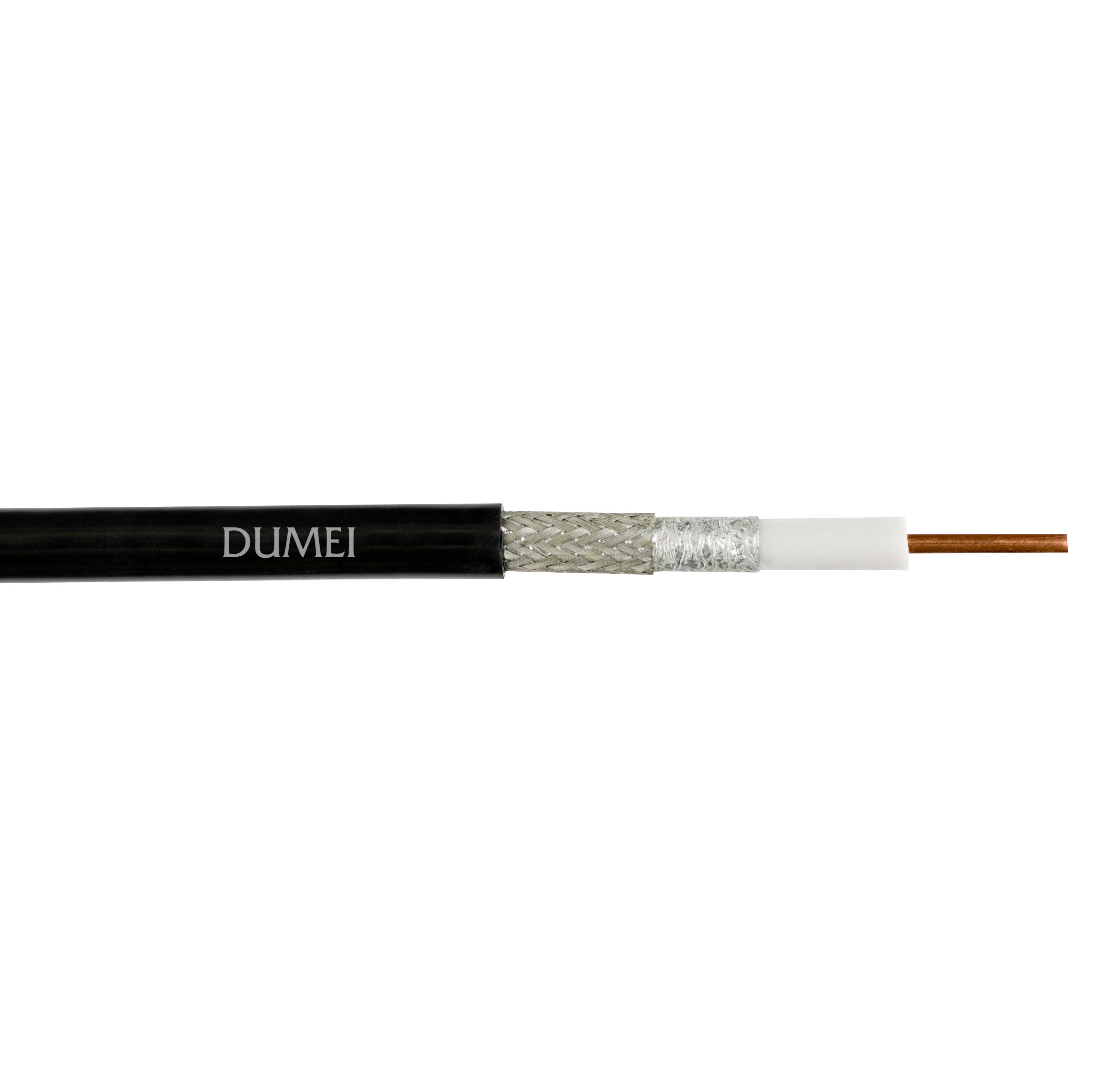

75Ω Braiding Coaxial Cable
Standard shielding/ Tri-shielding/Quad-shielding
Messenger Optional
Flood Compound
| Structure | Standard shield | TRI-shield | Quad-shield | |
| Nominal Inner Conductor | Diameter(mm) | 1.63 | 1.63 | 1.63 |
| Material | CCS or Cu | CCS or Cu | CCS or Cu | |
| Nominal Dielectric | Diameter(mm) | 7.11 | 7.11 | 7.11 |
| Material | Foamed PE | Foamed PE | Foamed PE | |
| 1st Shield (Tape) | AL/P-Foil Bonded | AL/P-Foil Bonded | AL/P-Foil Bonded | |
| 2nd Shield （Braid） | Material | Aluminum / TC | Aluminum / TC | Aluminum / TC |
| Coverage | Coverage 45-95% | |||
| 3rd Shield（Tape） | N/A | AL/P-Foil Unbonded | AL/P-Foil Unbonded | |
| 4th Shield (Braid) | Material | N/A | N/A | Aluminum / TC |
| Coverage | N/A | N/A | Coverage 45-95% | |
| Flooding Compound （Jelly） | Optional | Optional | Optional | |
| Jacket | Diameter(mm) | 10.03 | 10.16 | 10.29 |
| Material | PE or PVC | PE or PVC | PE or PVC | |
| Steel Messenger (mm) | 1.83 Galvanized | 1.83 Galvanized | 1.83 Galvanized | |
